Description:
Engine parts for C100,such as Empty Filter, fan, shaft gear, Cylinder head, Oil pump, Belt, Crankshaft, Stents, Door Fixed, Output Shaft, Filter interface, Layering...
1.Low speed with high torque adapts 2.Optimizing the heat engine system and transmission system improve the reliability of the engine.
3.Applying mass flow oil pump guarantees the reliability of the lubricating system. 4.Applying of the sphenoid starting clutch shortens the uniting time, improve the stability and lower the noise.
5.The engine is equipped with electronic reverse protecting device to improve the operating safety of the vehicle and make the vehicle easier to operate. 6Applying the new designed clutch guarantees of the transferring of the torque and lengthen the Life of the engine.
Specification:
|

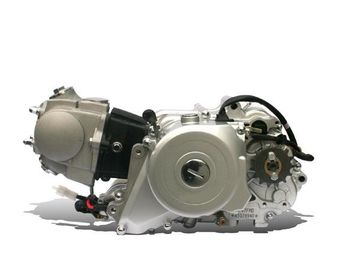

Engine Mode |
ZS139FMB |
|
Engine Name |
50D |
|
Engine Type |
Single cylinder,4-stroke,air-cooling,camshaft upwards,tilting(100 leaned) |
|
Displacement(ml) |
49.46 |
|
Dimension(mm x mm x mm) |
450 x 280 x 277 |
|
Net Weight(kg) |
22.5 |
|
Max.Power(kw/r/min) |
2.4/8000(1±5%) |
|
Max.Torque(N.m/r/min) |
3.0//7500(1±5%) |
|
Compression Ratio |
7.3: 1 |
|
Bore and Stroke(mm x mm) |
39 x 41.4 |
|
Ignition method |
CDI |
|
Lubrication method |
Pressure and Splash |
|
Min.Fuel Consumption(g/Kw.h) |
≤367 |
|
Starting method |
Electric/Kick |
|
Clutch method |
Manual Wet Multi-Plate |
|
Gearshift Method |
Constant mesh,two stage transmisson,4-speed gearshift |
|
Chosen model |
standard model |
|
※It has small displacement,good exhausting condition.For vehicle for children and the old,it is the ideal engine |
|
|
※Stable performance and easy to maintain |
|
|
|
|
|
|
|
|
Engine Mode |
ZS147FMD-A |
|
Engine Name |
70D |
|
Engine Type |
Single cylinder,4-stroke,air-cooling,camshaft upwards,tilting(100 leaned) |
|
Displacement(ml) |
71.8 |
|
Dimension(mm x mm x mm) |
450 x 280 x 277 |
|
Net Weight(kg) |
22.5 |
|
Max.Power(kw/r/min) |
3.4/8000(1±5%) |
|
Max.Torque(N.m/r/min) |
4.5/5500(1±5%) |
|
Compression Ratio |
8.8 : 1 |
|
Bore and Stroke(mm x mm) |
47 x 41.4 |
|
Ignition method |
CDI |
|
Lubrication method |
Pressure and Splash |
