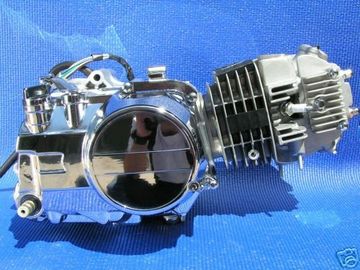

LF1P52FMI T120 Engine Horizontal 125cc Engine T120 Engine

Description:

Engine parts for T120,such as Empty Filter, fan, shaft gear, Cylinder head, Oil pump, Belt, Crankshaft, Stents, Door Fixed, Output Shaft, Filter interface, Layering...

1.Low speed with high torque adapts                                                                                                           2.Optimizing the heat engine system and transmission system improve the reliability of the engine.

3.Applying mass flow oil pump guarantees the reliability of the lubricating system.                                                             4.Applying of the sphenoid starting clutch shortens the uniting time, improve the stability and

  lower the noise.

5.The engine is equipped with electronic reverse protecting device to improve the operating safety

 of the vehicle and make the vehicle easier to operate.                                    6Applying the new designed clutch guarantees of the transferring of the torque and lengthen the life of the engine.

Specification:

LF1P52FMI

Type: Single cylinder, air-cooled, 4-stroke, electric/kick-starting, automatic clutch
Bore x Stroke:52.4×55.5mm
Total displacement:119.7mL
Compression ratio:9.0:1
Maximum net power/ rpm:5.8kw/7500r/min±375r/min
Maximum torque/ rpm:8.5N.m/5000r/min±250r/min
Minimum no-load steady rpm (idle speed): 1500r/min±100r/min
